Product name: NRP18


Model: Miniature PCB Relay


Product catalog: Electromechanical Relay (EMR)

Complete data download





QQ截图20230515143500

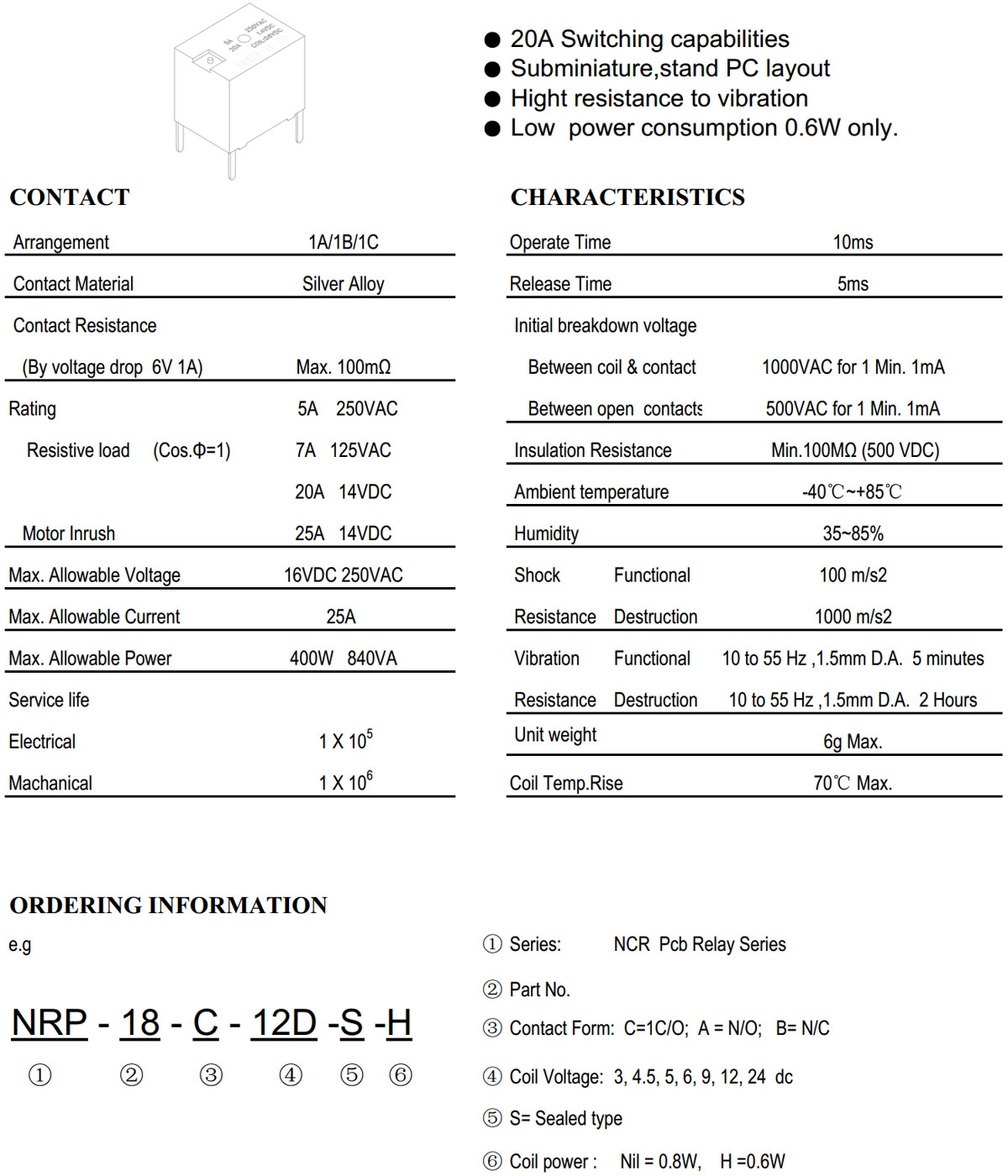

  • Ordering Information

QQ截图20230515112233 ①Series:  NCR  Pcb Relay Series
②Part No.
③Contact Form:  C=1C/O;  A = N/O;   B= N/C
④Coil Voltage:  3, 4.5, 5, 6, 9, 12, 24  dc
⑤S= Sealed type
⑥Coil power : Nil = 0.8W, H =0.6W



  • COIL DATA (at 20℃)

Nominal Voltage

(VDC)

Pick-up Voltage

VDC(Max)

Drop-out Voltage

VDC(Min)

Coil Resistance

(Ω)±10%

Max.Allowable Voltage

0.6W

0.8W

6

4.50

0.60

60

45

125% of nominal Voltage

9

6.75

0.90

135

101

12

9.00

1.20

240

180

24

18.00

2.40

960

720



  • DIMENSIONS (Unit: mm)

QQ截图20230515112347
